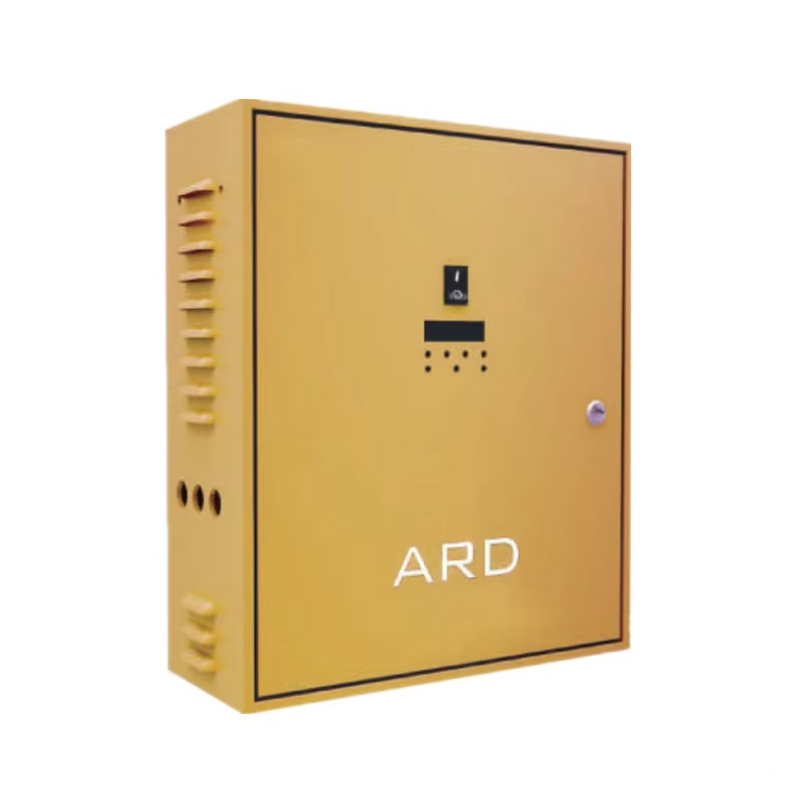

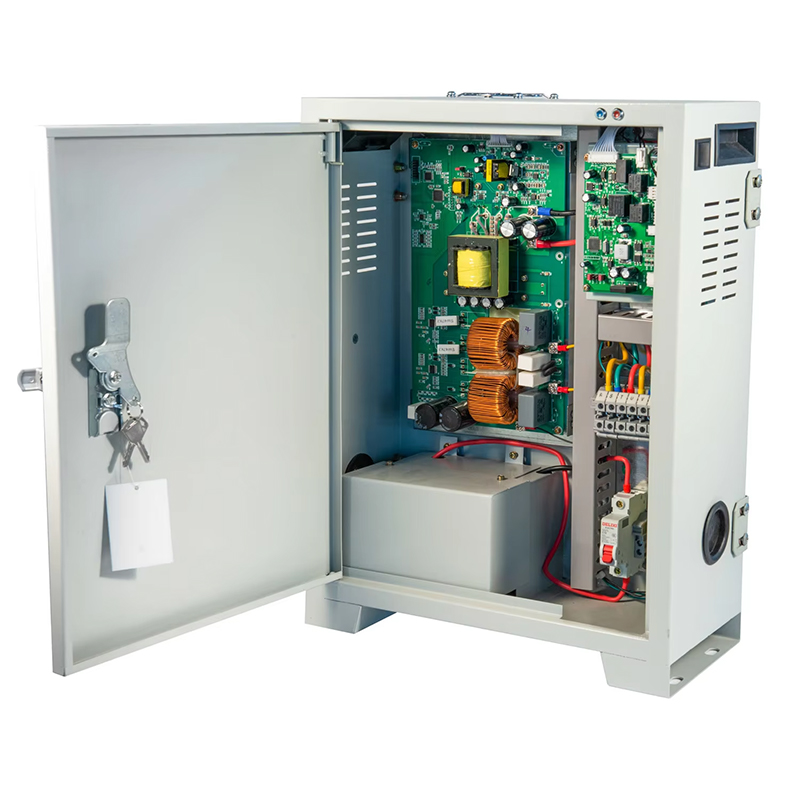

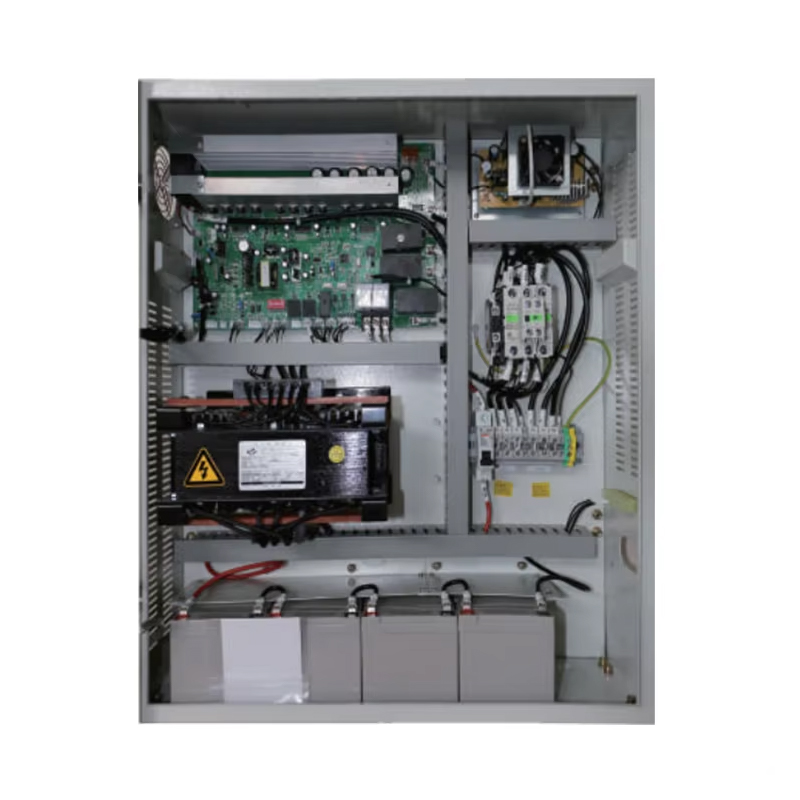

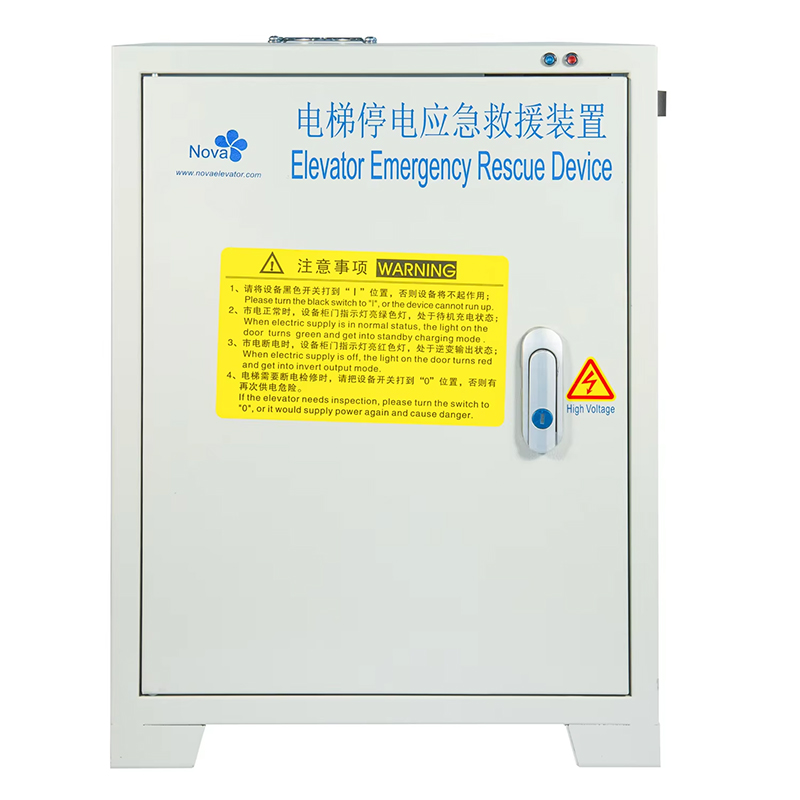

Home / Products / Elevator Parts / Electric Components / ARD UPS / VTSP376 High Quality and Efficient Ard-Automatic Rescue Device ARD
ARD UPS
Product Specifications
Parameter
NV65XM-ARD-10E
NV65XM-ARD-15E
NV65XM-ARD-18.5E
Rated charging voltage
55V
55V
55V
Rated charging current
0.3A
0.3A
4A
Rated output voltage
380Vac sine wave
380Vac sine wave
380Vac sine wave
Rated output frequency
50Hz (60Hz)
50Hz (60Hz)
50Hz (60Hz)
Rated output current
1.32A
2.63A
3.68A
Rated elevator direction
The direction of lightload
The direction of lightload
The direction of lightload
Inverter power
<=10KW
<=15KW
<=22KW
Storage battery
12V/74H×4
12V/12AH×4
12V/24AH×4
Size(without bracket)
450×630×165
505×705×180
780×605×195
Weight(without battery)
30KG
38KG
48KG
Weight(with battery)
38KG
47KG
80KG
