Product Name
|

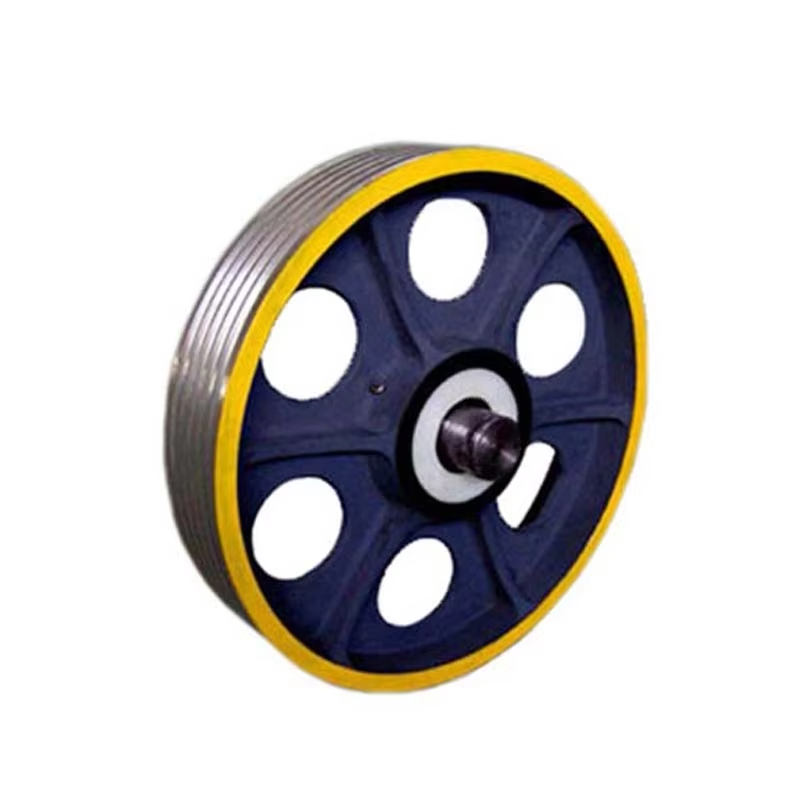

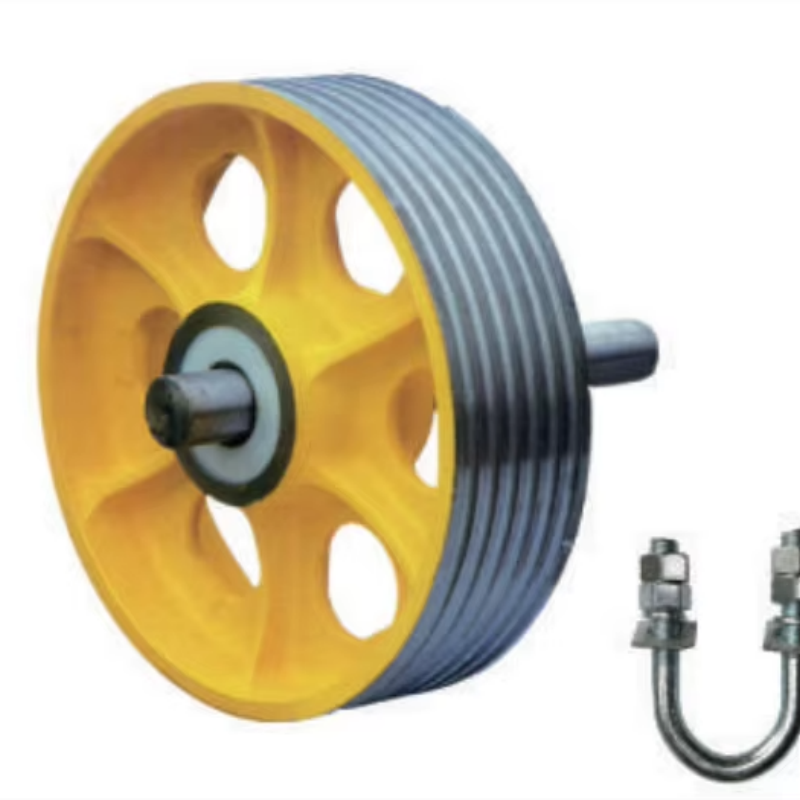

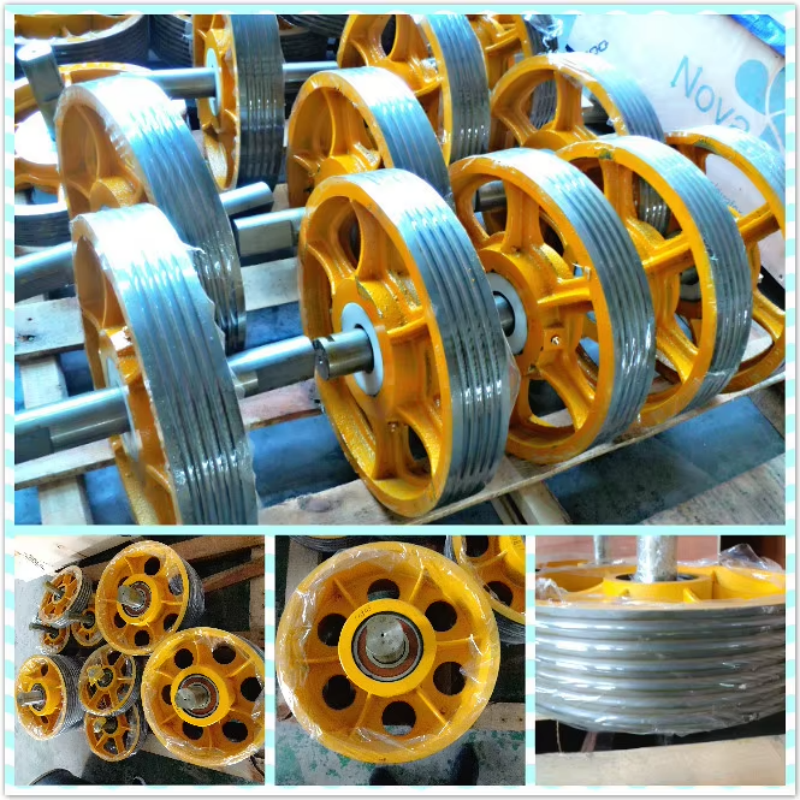

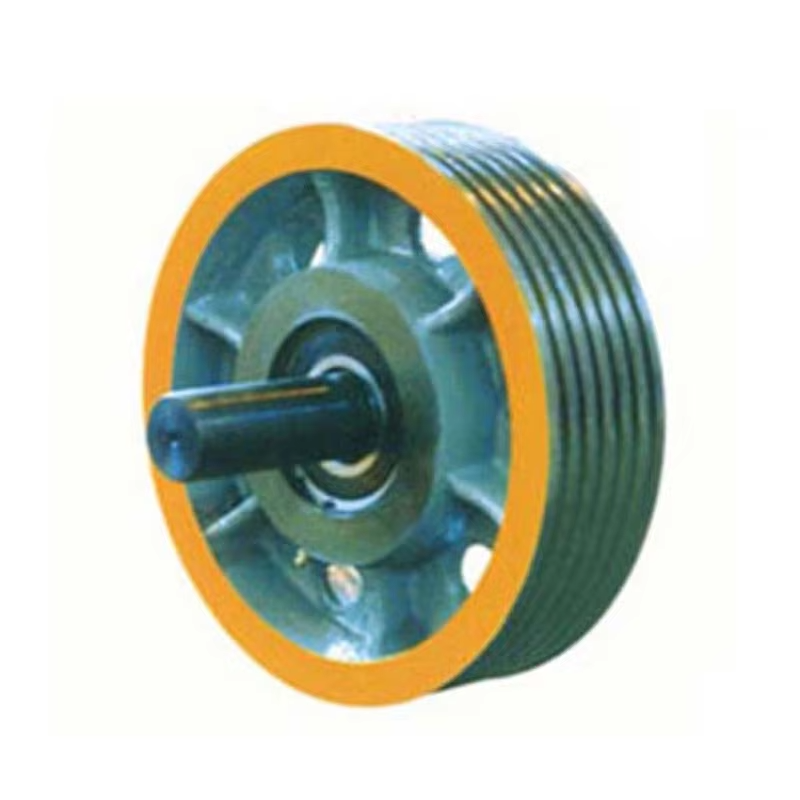

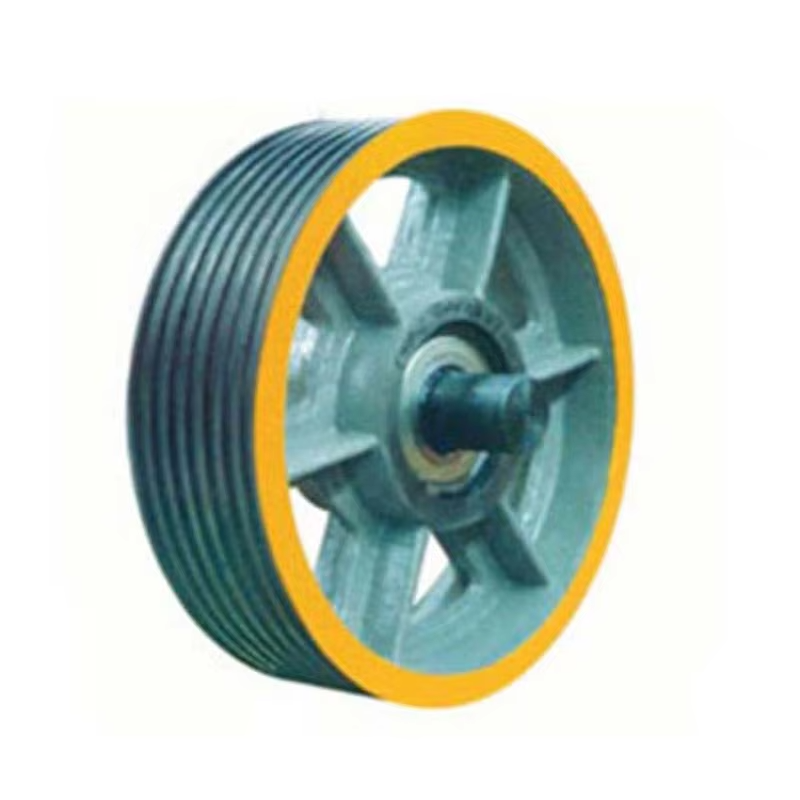

Elevator Deflector Sheave
|
|
Diameter
|
φ240 - φ640
|
|
Number of Slots
|
2 - 10
|
|
Rope
|
6.5 - 13
|
|
Slot Pitch
|
10 - 20
|
| NV-480-13 | φ140 | 6 | 10 | 15 | 105 | 95 | ≤2000KG | 6313 | |
| NV-480-14 | 6 | 10 | 16 | ||||||
| NV-480-15 | 7 | 8 | 12 | ||||||
| NV-480-16 | 7 | 8 | 13 | ||||||
| NV-520-01 | φ520 | φ130 | 3 | 13 | 20 | 70 | 95 | ≤1000KG | 6312 |
| NV-520-02 | 4 | 10 | 15 | ||||||
| NV-520-03 | 4 | 10 | 16 | ||||||
| NV-520-05 | 4 | 13 | 20 | 90 | 95 | ||||
| NV-520-06 | 5 | 10 | 15 | ||||||
| NV-520-07 | 5 | 10 | 16 | ||||||
| NV-520-08 | 5 | 13 | 20 | 108 | 95 | ≤1600KG | 6312 | ||
| NV-520-09 | 6 | 10 | 15 | ||||||
| NV-520-10 | 6 | 10 | 16 | ||||||
| NV-520-11 | φ140 | 6 | 13 | 20 | 128 | 120 | ≤2000KG | 6313 | |
| NV-520-12 | 7 | 10 | 15 | ||||||
| NV-520-13 | 7 | 10 | 16 | ||||||
| NV-520-14 | φ150 | 8 | 13 | 20 | 168 | 148 | ≤3000KG | 6314 | |
| NV-520-15 | 10 | 10 | 15 | ||||||
| NV-520-16 | 10 | 10 | 16 | ||||||
| NV-640-01 | φ640 | φ160 | 5 | 16 | 25 | 132 | 120 | ≤3000KG | 6315 |
| NV-640-02 | 6 | 13 | 20 | ||||||
| NV-640-03 | φ170 | 6 | 16 | 25 | 160 | 140 | ≤5000KG | 6316 | |
| NV-640-04 | 7 | 13 | 20 |
VITIN brand is committed to the research and development, manufacturing, and export of various elevator escalator products and elevator accessories. It has two business segments, VITIN Accessories Company and VITIN Elevator Technology Company.
At the same time, we also have a production capacity of 100000 tons of elevator guide rails per year under our own brand.
After years of development, companies under the VITIN brand have exported over 800 containers of elevator escalators and accessories annually, covering sales in more than 50 countries and regions including Europe, North and South America, Southeast Asia, and the Middle East.
