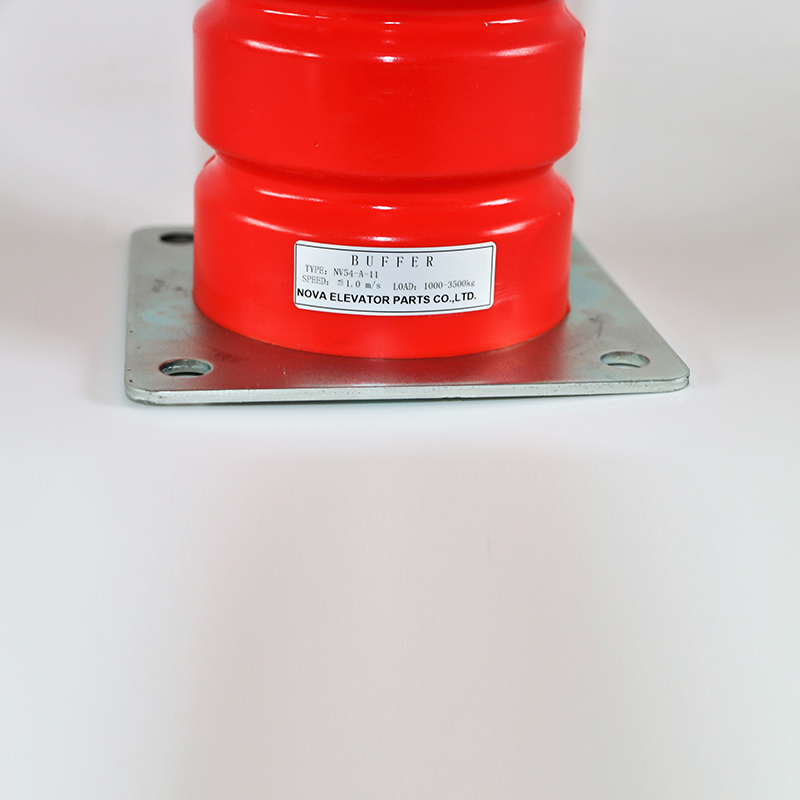

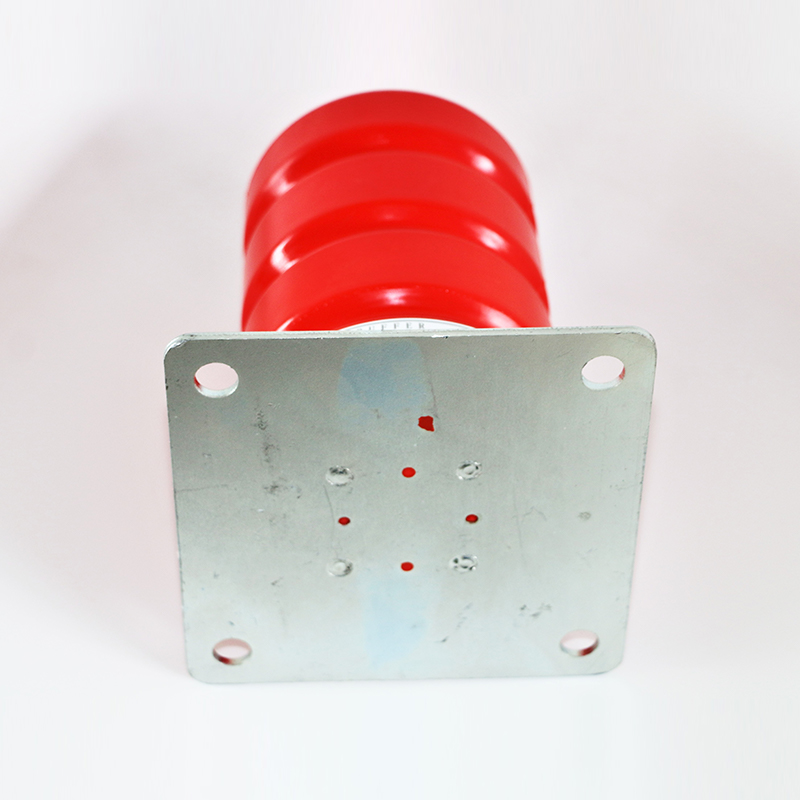

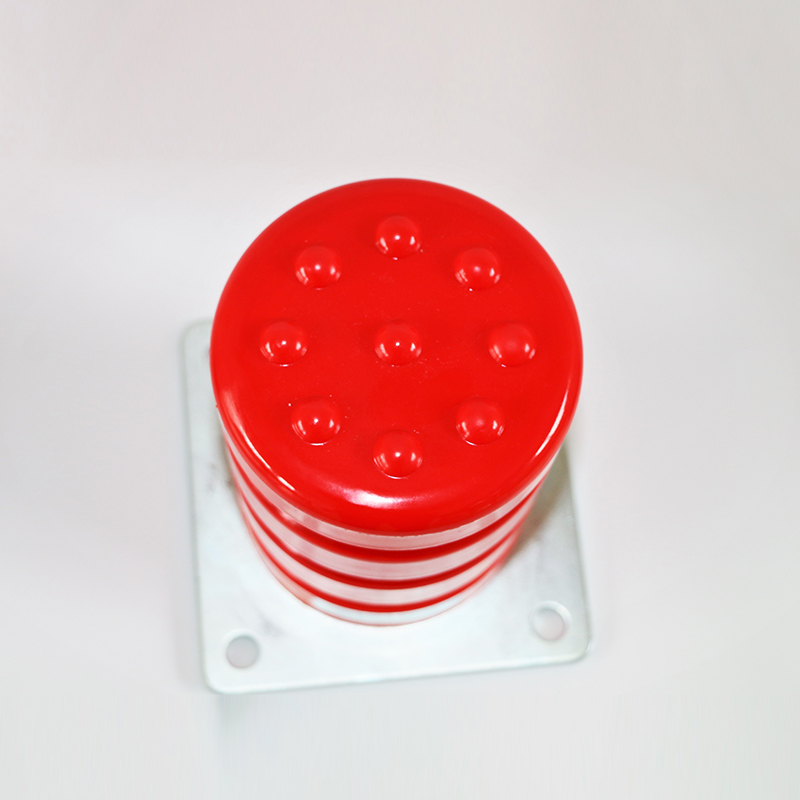

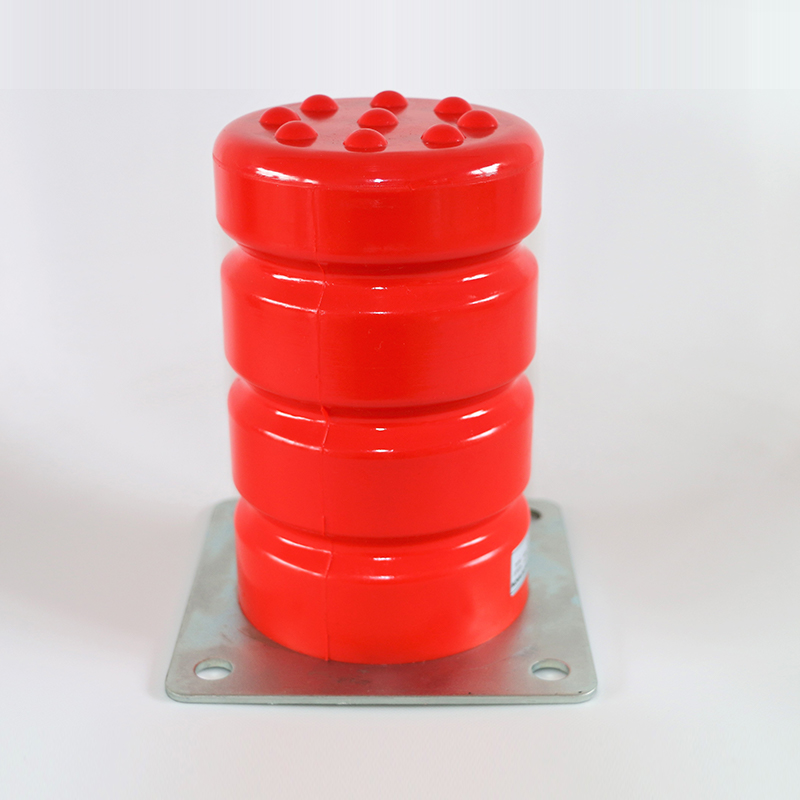

Home / Products / Elevator Parts / Safety Components / PU Buffer / VTSP309 Cheap Elevator Safety Component Elevator Rubber Buffer
PU Buffer
Tel/wechat/whatsapp: +86-13812695057
E-mail: [email protected]
| Serial No. | Travel | Specification(φD×H) | Load capacity(P+Q kg) | Mounting dimensions | Nominal Velocity | |||
| B | b | h | ∅ | |||||
| NV54-A-01 | 65 | φ65×80 | 200～1200 | 95 | 65 | 4 | 12 | ≤1.0m/s |
| NV54-A-02 | 65 | φ80×80 | 200～1600 | 108 | 80 | 4 | 12 | ≤1.0m/s |
| NV54-A-03 | 65 | φ80×100 | 200～2000 | 108 | 80 | 4 | 12 | ≤1.0m/s |
| NV54-A-04 | 100 | φ80×128 | 200～2600 | 108 | 80 | 4 | 12 | ≤1.0m/s |
| NV54-A-05 | 65 | φ100×80 | 500～3000 | 128 | 96 | 4 | 14 | ≤1.0m/s |
| NV54-A-06 | 73 | φ100×100 | 500～3000 | 128 | 96 | 4 | 14 | ≤1.0m/s |
| NV54-A-07 | 100 | φ100×120 | 500～3000 | 128 | 96 | 4 | 14 | ≤1.0m/s |
| NV54-A-08 | 100 | φ100×160 | 500～3000 | 128 | 96 | 4 | 14 | ≤1.0m/s |
| NV54-A-09 | 100 | φ100×200 | 500～3000 | 128 | 96 | 4 | 14 | ≤1.0m/s |
| NV54-A-10 | 65 | φ120×100 | 500～3000 | 160 | 126 | 5 | 14 | ≤1.0m/s |
| NV54-A-11 | 136 | φ120×192 | 1000～4000 | 160 | 126 | 5 | 14 | ≤1.0m/s |
| NV54-A-12 | 109 | φ130×160 | 1000～4000 | 160 | 126 | 5 | 14 | ≤1.0m/s |
| NV54-A-13 | 156 | φ130×200 | 1000～4000 | 160 | 126 | 5 | 14 | ≤1.0m/s |
| NV54-A-14 | 70 | φ140×120 | 500～3000 | 200 | 160 | 5 | 14 | ≤1.0m/s |
| NV54-A-15 | 150 | φ150×180 | 1800～4000 | 160 | 126 | 5 | 14 | ≤1.0m/s |
| NV54-A-16 | 180 | φ150×240 | 1000～4000 | 200 | 160 | 5 | 14 | ≤1.0m/s |
| NV54-A-17 | 150 | φ160×200 | 1800～4500 | 200 | 160 | 5 | 14 | ≤1.0m/s |
| NV54-A-18 | 156 | φ200×160 | 1800～4500 | 246 | 196 | 5 | 16 | ≤1.0m/s |
| NV54-A-19 | 156 | φ200×200 | 1800～4500 | 246 | 196 | 5 | 16 | ≤1.0m/s |
| NV54-A-20 | 156 | φ200×220 | 1800～4500 | 246 | 196 | 5 | 16 | ≤1.0m/s |
| NV54-A-21 | 180 | φ200×250 | 1800～4500 | 246 | 196 | 5 | 16 | ≤1.0m/s |
| NV54-A-22 | 190 | φ250×200 | 2000～6500 | 320 | 250 | 5 | 18 | ≤1.0m/s |
| NV54-A-23 | 190 | φ250×250 | 2000～7800 | 320 | 250 | 5 | 18 | ≤1.0m/s |
| NV54-A-24 | 190 | φ250×320 | 2000～8900 | 320 | 250 | 5 | 18 | ≤1.1m/s |
| NV54-A-25 | 190 | φ320×250 | 2000～9600 | 400 | 315 | 5 | 22 | ≤1.1m/s |
VITIN brand is committed to the research and development, manufacturing, and export of various elevator escalator products and elevator accessories. It has two business segments, VITIN Accessories Company and VITIN Elevator Technology Company.
At the same time, we also have a production capacity of 100000 tons of elevator guide rails per year under our own brand.
After years of development, companies under the VITIN brand have exported over 800 containers of elevator escalators and accessories annually, covering sales in more than 50 countries and regions including Europe, North and South America, Southeast Asia, and the Middle East.
