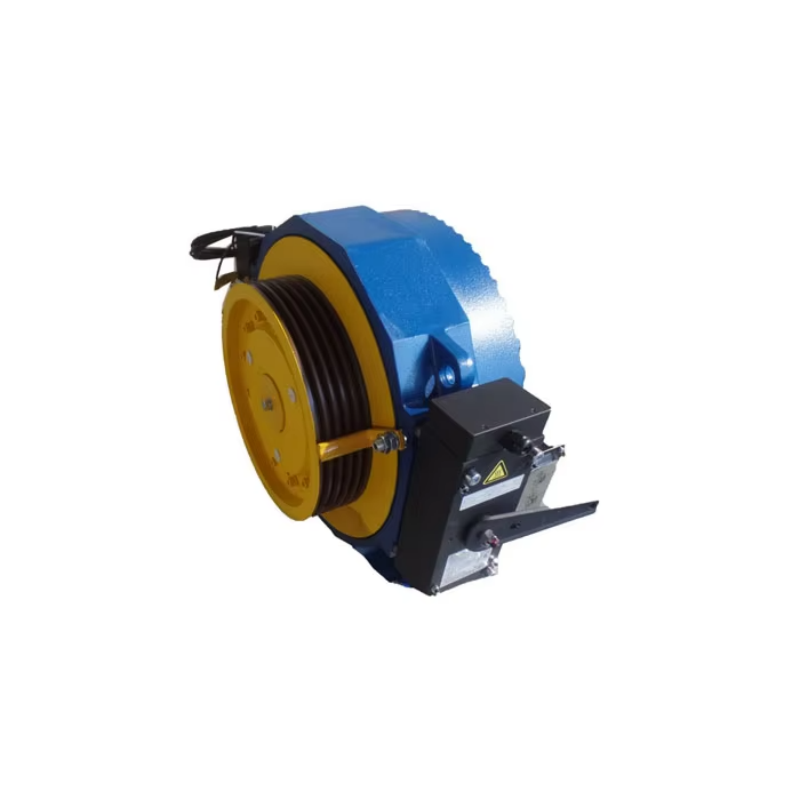

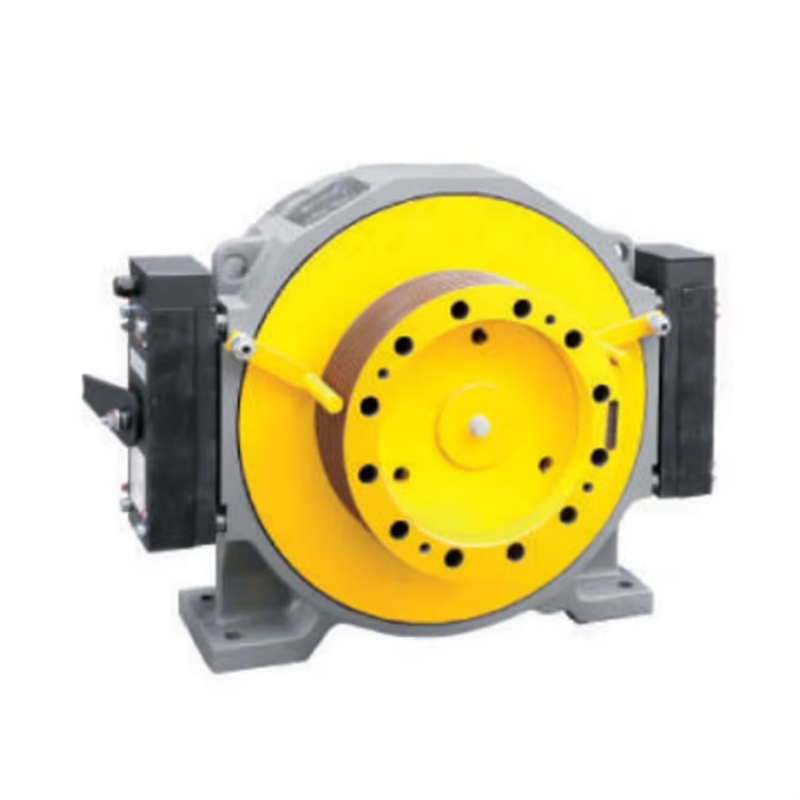

Home / Products / Elevator Parts / Traction System / Traction Machine / VTSP206 Gearless Elevator Lift Traction Machine Motor for Elevator
Traction Machine
Tel/wechat/whatsapp: +86-13812695057
E-mail: [email protected]
| name | Gearless traction machine for elevators |
| Voltage | 380V |
| Speed (m/s) | 1 - 2.5 |
| Hanging rope | 2:01 |
| weight | 350 kg |
| Max. Shaft load | 3000 kg |
| brake | DC110V 2 × 0.88A |
| Model | Load (Kg) | Speed (m/s) | Pulley diameter (mm) | Rope reel (mm) | Current (A) | Torque (Nm) | Rated speed (rpm) | frequency | power |
| (Hz) | (KW) | ||||||||
| NV41T-W7 | 630 | 1 | Φ400 | 4 × Φ10 × 16 | 9.7 | 420 | 96 | 25.6 | 4.2 |
| NV41T-W7 | 630 | 1.5 | Φ400 | 4 × Φ10 × 16 | 14.9 | 420 | 144 | 38.4 | 6.3 |
| NV41T-W7 | 630 | 1.6 | Φ400 | 4 × Φ10 × 16 | 14.9 | 420 | 153 | 40.8 | 6.7 |
| NV41T-W7 | 630 | 1.75 | Φ400 | 4 × Φ10 × 16 | 15.9 | 420 | 167 | 44.5 | 7.3 |
| NV41T-W7 | 630 | 2 | Φ400 | 4 × Φ10 × 16 | 18.3 | 420 | 192 | 51.2 | 8.4 |
| NV41T-W7 | 800 | 1 | Φ400 | 5 × Φ10 × 16 | 12.1 | 530 | 96 | 25.6 | 5.3 |
| NV41T-W7 | 800 | 1.5 | Φ400 | 5 × Φ10 × 16 | 18.8 | 530 | 144 | 38.4 | 8 |
| NV41T-W7 | 800 | 1.6 | Φ400 | 5 × Φ10 × 16 | 18.8 | 530 | 153 | 40.8 | 8.5 |
| NV41T-W7 | 800 | 1.75 | Φ400 | 5 × Φ10 × 16 | 20.7 | 530 | 167 | 44.5 | 9.3 |
| NV41T-W7 | 800 | 2 | Φ400 | 5 × Φ10 × 16 | 23.2 | 530 | 192 | 51.2 | 10.7 |
| NV41T-W7 | 1000 | 1 | Φ400 | 5 × Φ10 × 16 | 14.7 | 650 | 96 | 25.6 | 6.5 |
| NV41T-W7 | 1000 | 1.5 | Φ400 | 5 × Φ10 × 16 | 22.9 | 650 | 144 | 38.4 | 9.8 |
| NV41T-W7 | 1000 | 1.6 | Φ400 | 5 × Φ10 × 16 | 22.9 | 650 | 153 | 40.8 | 10.4 |
| NV41T-W7 | 1000 | 1.75 | Φ400 | 5 × Φ10 × 16 | 25.1 | 650 | 167 | 44.5 | 11.4 |
| NV41T-W7 | 1000 | 2 | Φ400 | 5 × Φ10 × 16 | 28.2 | 650 | 192 | 51.2 | 13.1 |
VITIN brand is committed to the research and development, manufacturing, and export of various elevator escalator products and elevator accessories. It has two business segments, VITIN Accessories Company and VITIN Elevator Technology Company.
At the same time, we also have a production capacity of 100000 tons of elevator guide rails per year under our own brand.
After years of development, companies under the VITIN brand have exported over 800 containers of elevator escalators and accessories annually, covering sales in more than 50 countries and regions including Europe, North and South America, Southeast Asia, and the Middle East.
