Home / Products / Elevator Parts / Traction System / Wire Rope / VTSP267 Elevator Components 8-22mm Steel Wire Rope for Passenger Lift
Wire Rope
Tel/wechat/whatsapp: +86-13812695057
E-mail: [email protected]
|
Product Name
|

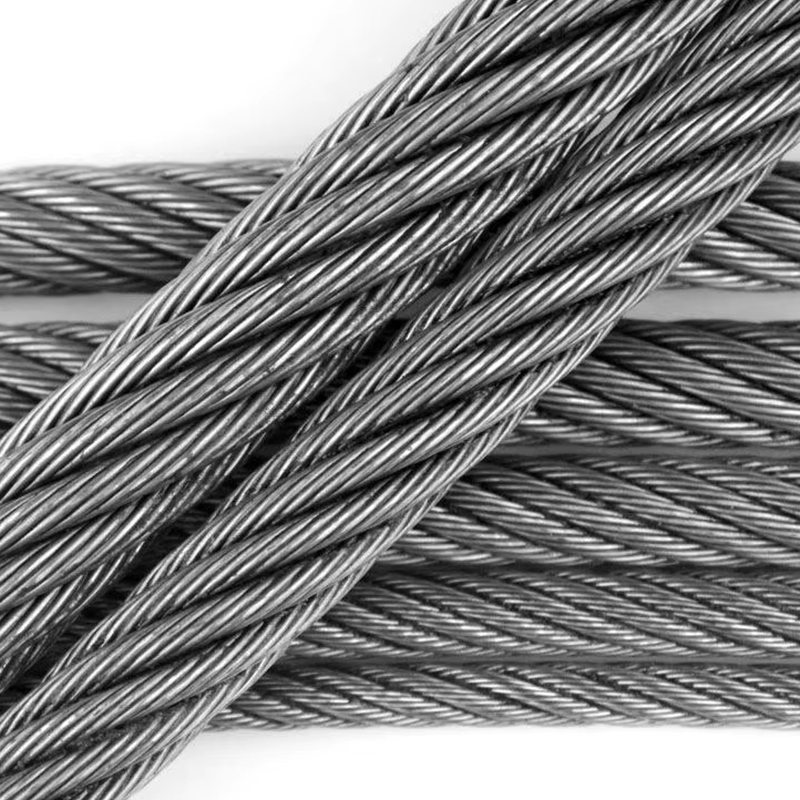

Elevator steel wire rope
|
|
Material
|
ss304, ss316, galvanized steel ect.
|
|
Diameter Range
|
6-22mm
|
|
Types of Cables
|

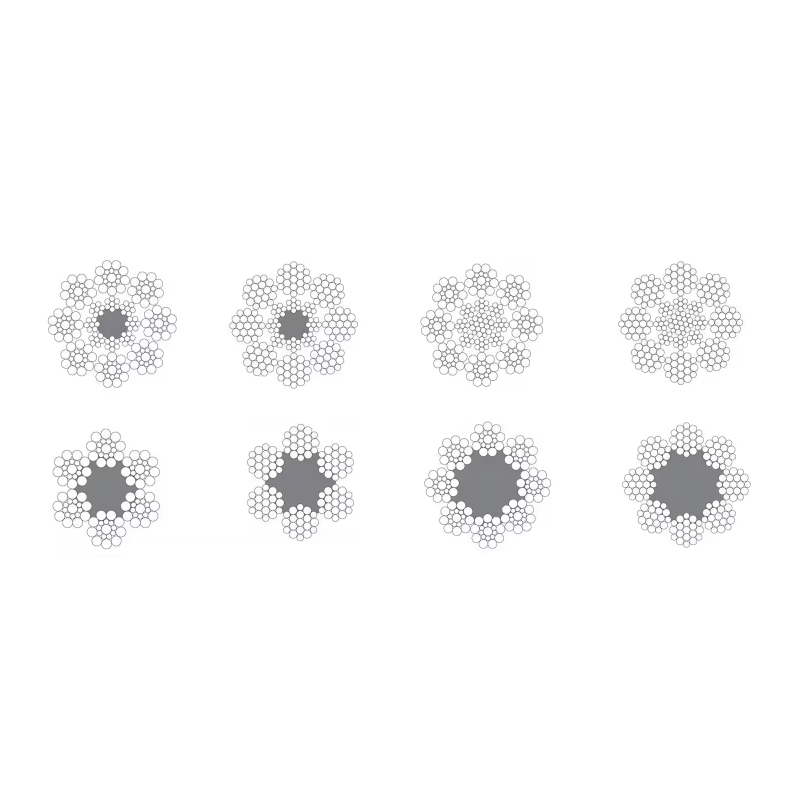

Stainless steel wire rope, galvanized wire rope, coated wire rope, special wire rope
|
|
Surface
|
Bright, coated, galvanized, ect.
|
|
Features
|
Stainless Steel Cables have smooth surface, high corrosion resistant, high fatigue strength, excellent heat resistance and are
free from Lateral / longitudinal cracks, pits and marks etc |
|
Nominal Rope Diameter
|

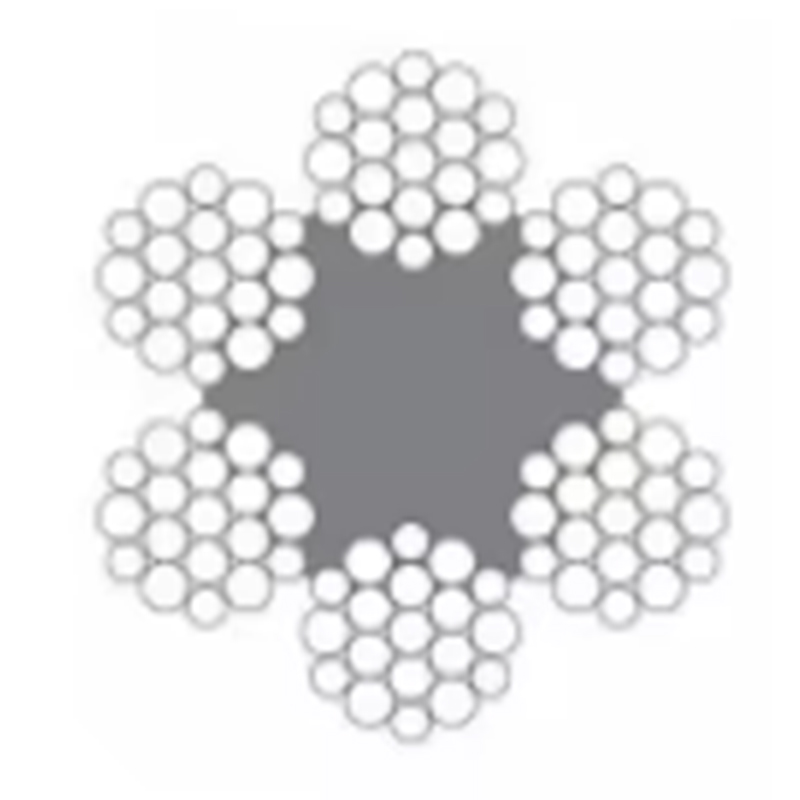

6*19S+PP
|
Minimum Breaking Load
|
|||
|
Dual Tensile,Mpa
|
Single Tensile,Mpa
|
||||
|
1370/1770
|
1570/1770
|
1570
|
1770
|
||
|
mm
|
Kg/100m
|
kN
|
kN
|
kN
|
kN
|
|
6
|
12.9
|
17.8
|
19.5
|
18.7
|
21
|
|
8
|
23
|
31.7
|
34.6
|
33.2
|
37.4
|
|
Nominal Rope Diameter
|
Approx Weight
|
Minimum Breaking Load
|
|||
|
Dual Tensile,Mpa
|
Single Tensile,Mpa
|
||||
|
1370/1770
|
1570/1770
|
1570
|
1770
|
||
|
mm
|
Kg/100m
|
kN
|
kN
|
kN
|
kN
|
|
8
|
21.8
|
28.1
|
30.8
|
29.4
|
33.2
|
|
9
|
27.5
|
35.6
|
38.9
|
37.3
|
42
|
|
10
|
34
|
44
|
48.1
|
46
|
51.9
|
|
11
|
41.1
|
53.2
|
58.1
|
55.7
|
62.8
|
|
12
|
49
|
63.3
|
69.2
|
66.2
|
74.7
|
|
13
|
57.5
|
74.3
|
81.2
|
77.7
|
87.6
|
|
14
|
66.6
|
86.1
|
94.2
|
90.2
|
102
|
|
15
|
76.5
|
98.9
|
108
|
104
|
117
|
|
16
|
87
|
113
|
123
|
118
|
133
|
|
18
|
110
|
142
|
156
|
149
|
168
|
|
19
|
123
|
159
|
173
|
166
|
187
|
|
20
|
136
|
176
|
192
|
184
|
207
|
|
22
|
165
|
213
|
233
|
223
|
251
|
|
Nominal Rope Diameter
|
Approx Weight
|
Minimum Breaking Load
|
||||
|
Dual Tensile,Mpa
|
||||||
|
1370/1770
|
1570/1770
|
1620/1770
|
||||
|
IWRC
|
IWRF
|
IWRC
|
IWRF
|
IWRC
|
IWRF
|
|
|
mm
|
Kg/100m
|
kN
|
kN
|
|||
|
8
|
26
|
25.9
|
35.8
|
35.2
|
38
|
37.4
|
|
9
|
33
|
32.8
|
45.3
|
44.5
|
48.2
|
47.3
|
|
10
|
40.7
|
40.5
|
55.9
|
55
|
59.5
|
58.5
|
|
11
|
49.2
|
49
|
67.6
|
66.5
|
79.1
|
70.7
|
|
12
|
58.6
|
58.3
|
80.5
|
79.1
|
85.6
|
84.2
|
|
13
|
68.8
|
68.4
|
94.5
|
92.9
|
100
|
98.8
|
|
14
|
79.8
|
79.4
|
110
|
108
|
117
|
115
|
|
15
|
91.6
|
91.1
|
126
|
124
|
134
|
132
|
|
16
|
104
|
104
|
143
|
141
|
152
|
150
|
|
18
|
132
|
131
|
181
|
178
|
193
|
189
|
|
19
|
147
|
146
|
202
|
198
|
215
|
211
|
|
20
|
163
|
162
|
224
|
220
|
238
|
234
|
|
22
|
197
|
196
|
271
|
266
|
283
|
283
|
VITIN brand is committed to the research and development, manufacturing, and export of various elevator escalator products and elevator accessories. It has two business segments, VITIN Accessories Company and VITIN Elevator Technology Company.
At the same time, we also have a production capacity of 100000 tons of elevator guide rails per year under our own brand.
After years of development, companies under the VITIN brand have exported over 800 containers of elevator escalators and accessories annually, covering sales in more than 50 countries and regions including Europe, North and South America, Southeast Asia, and the Middle East.
