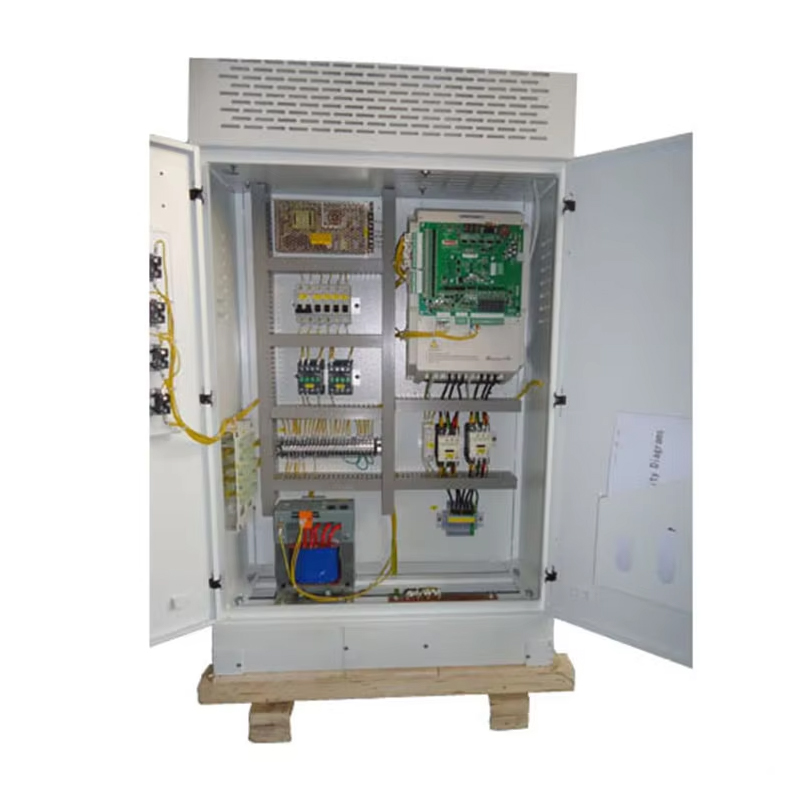

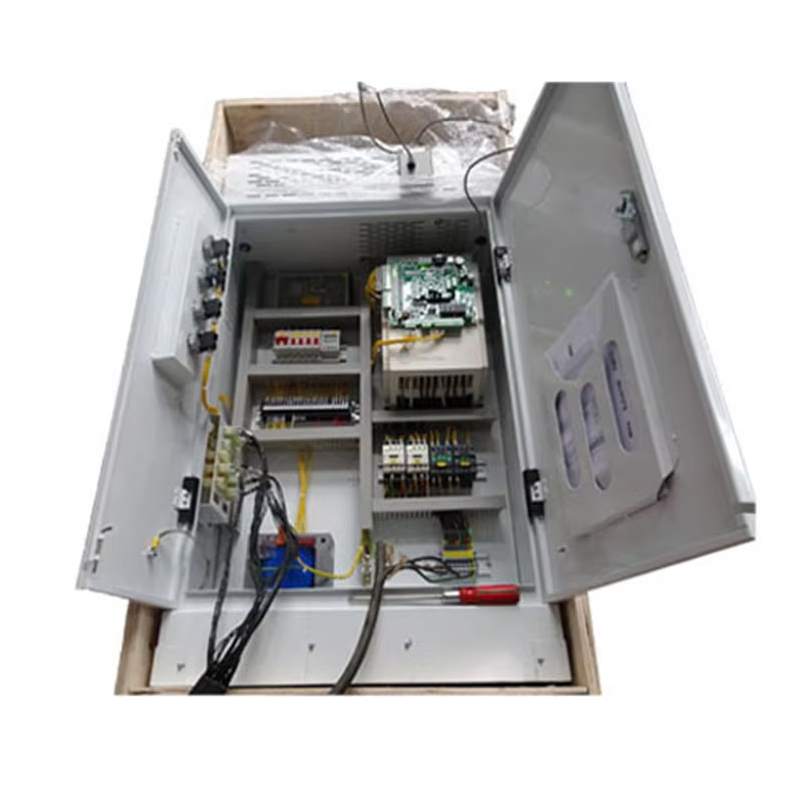

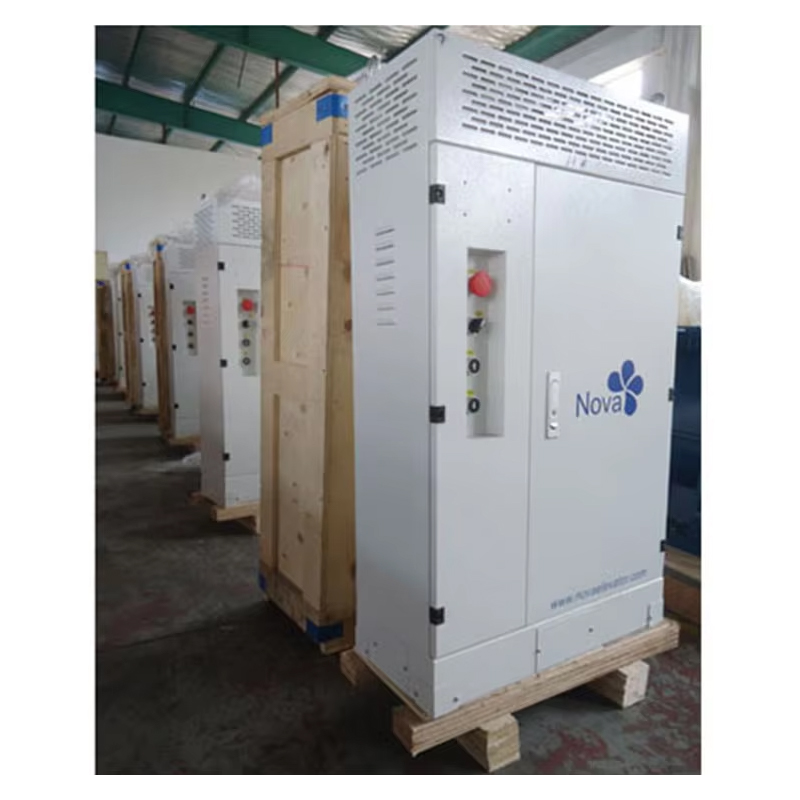

Home / Products / Elevator Parts / Electric Components / Controlling Cabinet / VTSP320 3000 Series Step Smart Elevator Lift Nice Controller
Controlling Cabinet
Tel/wechat/whatsapp: +86-13812695057
E-mail: [email protected]
| Model Code | Frame | Input Current(A) | Output Current(A) | Typical Motor(W) | Dimension | Dimension | Braking Unit | ||||||
| 10HP | 30HP | 10HP | 30HP | Height(H) | Width(W) | Depth(D) | Max resistor(Ω) | Min resistor(Ω) | Power of braking resistor(W) | ||||
| W1-L-AJ-B-2002 | C | 9.2 | 11 | 5.2 | 9.6 | 1.1/2.2 | 347.0mm | 223.0mm | 143.0mm | 145.0/72.0 | 125.0/65.0 | 300/600 | Built-in |
| W1-L-AJ-B-2003 | C | 13 | 17 | 7.5 | 14 | 1.5/3.7 | 347.0mm | 223.0mm | 143.0mm | 105/54.0 | 90.0/50.0 | 450/1100 | |
| 220-NV-L-A/B-4007 | D | 17.9 | 20.5 | 10.3 | 18 | 22/4.0 | 347.0mm | 223.0mm | 173.5mm | 72.0/40.0 | 63.0/35.0 | 600/1200 | |
| 220-NV-L-A/B-4011 | D | 25.3 | 29 | 15.5 | 27 | 3.7/5.5 | 347.0mm | 223.0mm | 173.5mm | 43.0/29.0 | 37.0/25.0 | 1100/1600 | |
| 220-NV-L-A/B-4015 | D | 31.3 | 36 | 19 | 33 | 4.0/7.5 | 347.0mm | 223.0mm | 173.5mm | 40.0/26.0 | 35.0/22.0 | 1200/2500 | |
| 220-NV-L-A/B-4018 | E | 34.6 | 41 | 22.5 | 39 | 5.5/11.0 | 350.0mm | 210.0mm | 188.0mm | 29.0/14.5 | 25.0/13.0 | 1600/3500 | |
| 220-NV-L-A/B-4022 | E | 42.6 | 49 | 27.5 | 48 | 11.0/15.0 | 360.0mm | 210.0mm | 188.0mm | 18.0/13.0 | 16.0/12.5 | 3500/4500 | |
| 220-NV-L-A/B-4030 | E | 52.6 | 62 | 34.6 | 60 | 15.0/18.5 | 554.5mm | 289.6mm | 223.0mm | 13.0/12.5 | 13.0/12.0 | 4500/5500 | |
| Model Code | Frame | Input Current(A) | Output Current(A) | Typical Motor(KW) | Dimension | Dimension | Braking Unit | ||||
| 30Ph | 30Ph | ||||||||||
| Height(H) | Width(W) | Depth(D) | Max resistor(Ω) | Min resistor(Ω) | Power of braking resistor(W) | ||||||
| NV-L-A/B-4002 | C | 6.5 | 5.1 | 2.2 | 347.0mm | 223.0mm | 143.0mm | 290 | 230 | 600 | Built-in |
| NV-L-A/B-4003 | C | 10.5 | 9 | 3.7 | 347.0mm | 223.0mm | 143.0mm | 170 | 135 | 1100 | |
| NV-L-A/B-4005 | C | 14.8 | 13 | 5.5 | 347.0mm | 223.0mm | 143.0mm | 115 | 90 | 1600 | |
| NV-L-A/B-4007 | D | 20.5 | 18 | 7.5 | 347.0mm | 223.0mm | 173.5mm | 85 | 65 | 2500 | |
| NV-L-A/B-4011 | D | 29 | 27 | 11 | 347.0mm | 223.0mm | 173.5mm | 55 | 43 | 3500 | |
| NV-L-A/B-4015 | D | 36 | 33 | 15 | 347.0mm | 223.0mm | 173.5mm | 43 | 35 | 4500 | |
| NV-L-A/B-4018 | E | 41 | 39 | 18.5 | 350.0mm | 210.0mm | 188.0mm | 34 | 25 | 5500 | |
| NV-L-A/B-4022 | E | 49.5 | 48 | 22 | 350.0mm | 210.0mm | 188.0mm | 24 | 22 | 6500 | |
| NV-L-A/B-4030 | E | 62 | 60 | 30 | 554.5mm | 289.6mm | 223.0mm | 20 | 16 | 9000 | |
| NV-L-A/B-4037 | F | 77 | 75 | 37 | 549.0mm | 385.0mm | 265.0mm | 16 | 13 | 11000 | External |
| NV-L-A/B-4045 | F | 93 | 91 | 45 | 549.0mm | 385.0mm | 265.0mm | 14 | 11 | 13500 | |
| Model Code | Rated Power (kVA) | Rated Output Current (A) | Suitable Motor Power (kW) | Model Code | Rated Power (kVA) | Rated Output Current (A) | Suitable Motor Power (kW) |
| 200V Inverter | 400V Inverter | ||||||
| 2S01P1 | 2.3 | 6 | 1.1 | 4T01P1 | 2.7 | 3.5 | 1.1 |
| 2S02P2 | 4.6 | 12 | 2.2 | 4T02P2 | 4.7 | 6.2 | 2.2 |
| 2S03P7 | 6.9 | 18 | 3.7 | 4T03P7 | 6.9 | 9 | 3.7 |
| 2T05P5 | 9.5 | 25 | 5.5 | 4T05P5 | 8.5 | 13 | 5.5 |
| 2T07P5 | 12.8 | 33 | 7.5 | 4T07P5 | 14 | 18 | 7.5 |
| 2T0011 | 17.9 | 47 | 11 | 4T0011 | 18 | 27 | 11 |
| 2T0015 | 23 | 60 | 15 | 4T0015 | 24 | 34 | 15 |
| 2T18P5 | 29 | 75 | 18.5 | 4T18P5 | 29 | 41 | 18.5 |
| 2T0022 | 32 | 80 | 22 | 4T0022 | 34 | 48 | 22 |
VITIN brand is committed to the research and development, manufacturing, and export of various elevator escalator products and elevator accessories. It has two business segments, VITIN Accessories Company and VITIN Elevator Technology Company.
At the same time, we also have a production capacity of 100000 tons of elevator guide rails per year under our own brand.
After years of development, companies under the VITIN brand have exported over 800 containers of elevator escalators and accessories annually, covering sales in more than 50 countries and regions including Europe, North and South America, Southeast Asia, and the Middle East.
