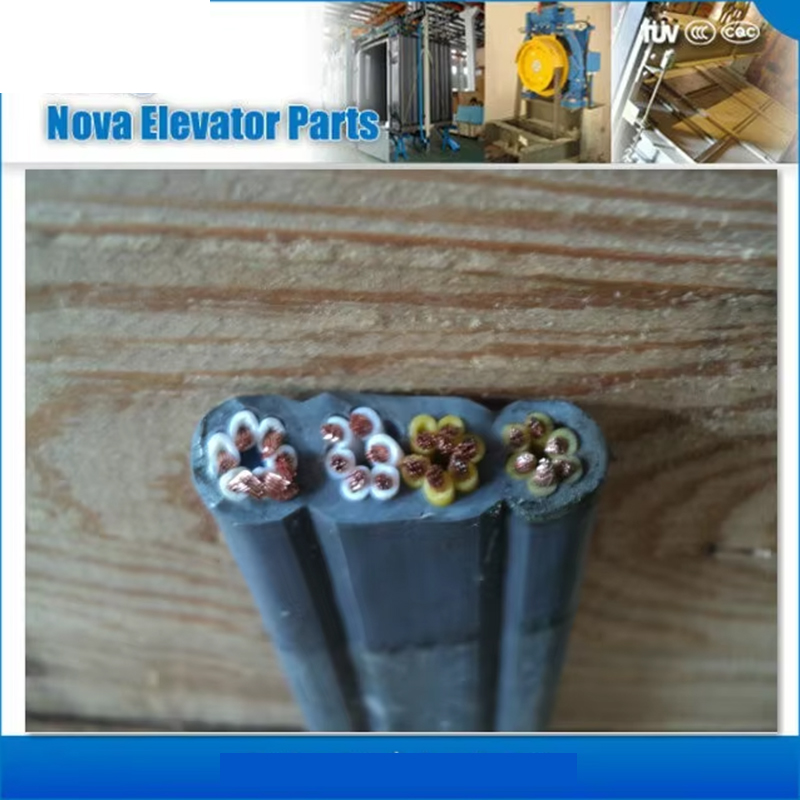

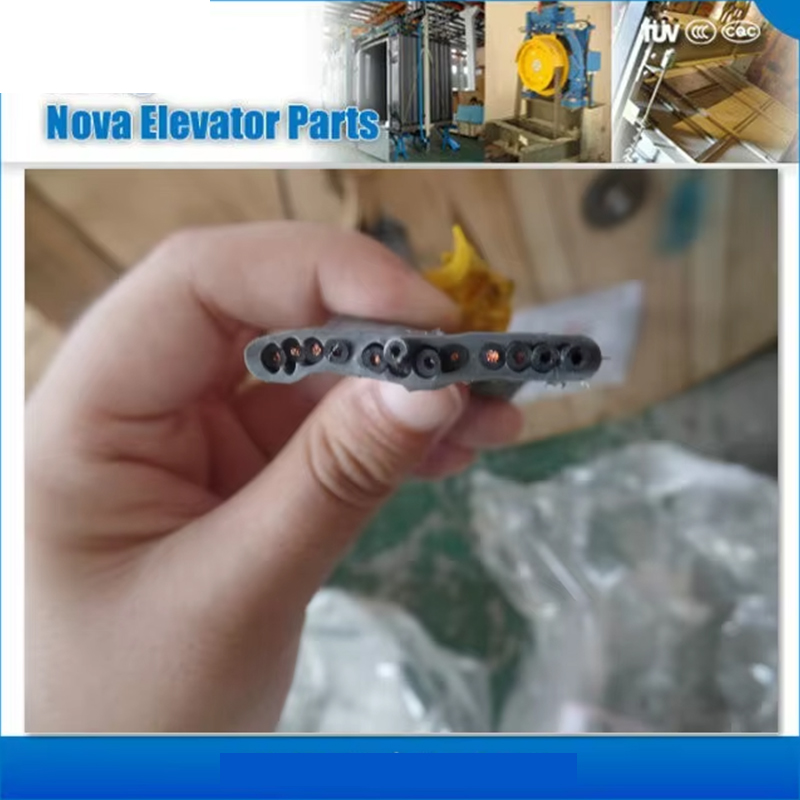

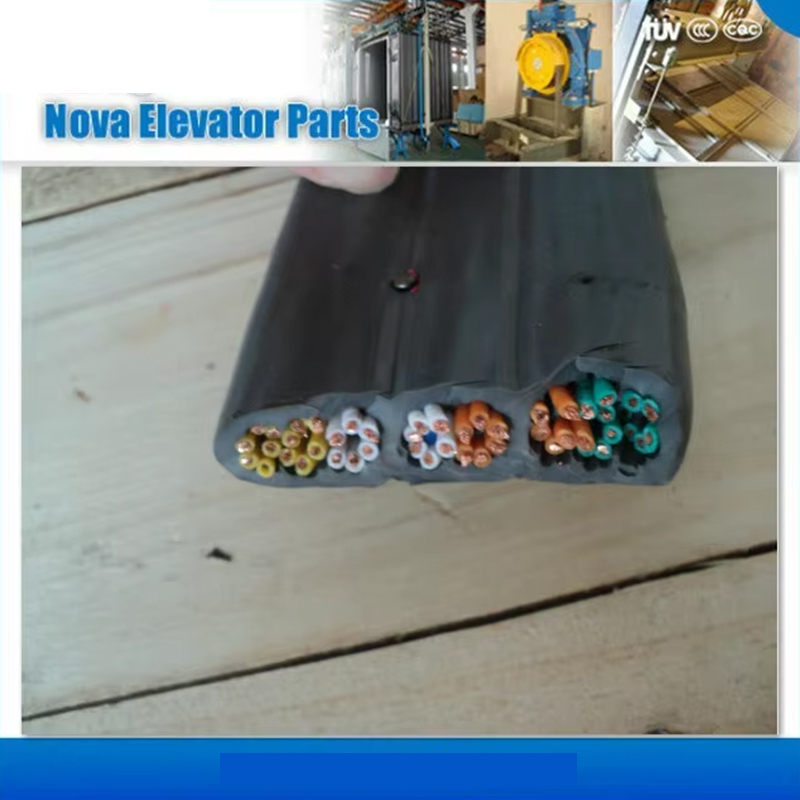

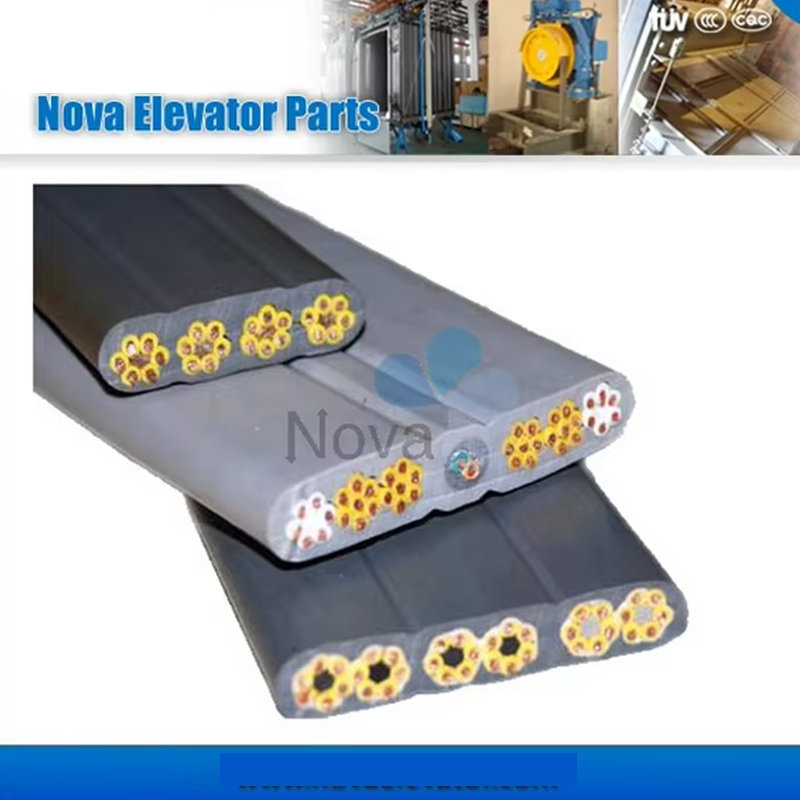

Home / Products / Elevator Parts / Electric Components / Elevator Cable / VTSP368 Elevator Flat Flexible Copper Conductor PVC Insulated PVC Sheath Elevator Traveling Cable
Elevator Cable
Tel/wechat/whatsapp: +86-13812695057
E-mail: [email protected]
|
Conductor
|
Fine strands of bare copper wire acco.to VDE0295Class5
|
|
Insulation
|
Mixed PVC
|
|
Color
|
As your requirements
|
|
Sheath material
|
Pvc,cold and fame resistance
|
|
Bearing
|
Steel rope
|
|
Outer sheath
|
Flexible PVC, cold resistance,fame resistance
|
|
Clour
|
Grey
|
|
Three kinds of shielding
|
Aluminum foil, bare cooper
|
|
Rated Voltage
|
450/750V, test voltage:2500V
|
|
Type
|
Conductor
Section(mm2) |
Conductor
Construction(mm2) |
Overall diameter
Dia.(mm) |
70℃ Insulated Resister
(M Ω·KM) |
20℃ Conductor DC Resister
(Ω/KM) |
|
TVVB
|
20×0.75
|
30/0.18
|
29.9×9.0
|
≥0.011
|
≤26.0
|
|
TVVB
|
24×0.75
|
30/0.18
|
30.5×9.1
|
≥0.011
|
≤26.0
|
|
TVVBG
|
2×1.0+TV(SYV75-4)
|
7/0.24+50/0.16
|
15.8×7.6
|
≥0.010
|
≤19.5
|
|
TVVB
|
20×0.75+(2×2)×0.75
|
30/0.18
|
44.2×9.1
|
≥0.011
|
≤26.0
|
|
TVVB
|
36×0.75+(2×2)×0.75
|
30/0.18
|
62×10.0
|
≥0.011
|
≤26.0
|
|
TVVB
|
48×0.75+(2×2)×0.75
|
30/0.18
|
68.5×10.0
|
≥0.011
|
≤26.0
|
|
TVVBG
|
30×0.75
|
30/0.18
|
53×8.6
|
≥0.011
|
≤26.0
|
|
TVVBG
|
36×0.75
|
30/0.18
|
54.0×9.5
|
≥0.011
|
≤26.0
|
|
TVVBG
|
40×0.75
|
30/0.18
|
58×8.2
|
≥0.011
|
≤26.0
|
|
TVVBG
|
42×0.75
|
30/0.18
|
66.6×9.7
|
≥0.011
|
≤26.0
|
|
TVVBG
|
48×0.75
|
30/0.18
|
67.2×9.5
|
≥0.011
|
≤26.0
|
|
TVVBG
|
60×0.75
|
30/0.18
|
80.0×9.5
|
≥0.011
|
≤26.0
|
|
TVVB
|
30×0.75
|
30/0.18
|
44.2×9.1
|
≥0.011
|
≤26.0
|
|
TVVB
|
36×0.75
|
30/0.18
|
42.5×9.0
|
≥0.011
|
≤26.0
|
|
TVVB
|
40×0.75
|
30/0.18
|
5.25×9.0
|
≥0.011
|
≤26.0
|
|
TVVB
|
42×0.75
|
30/0.18
|
54.1×9.7
|
≥0.011
|
≤26.0
|
|
TVVB
|
48×0.75
|
30/0.18
|
58.0×9.6
|
≥0.011
|
≤26.0
|
