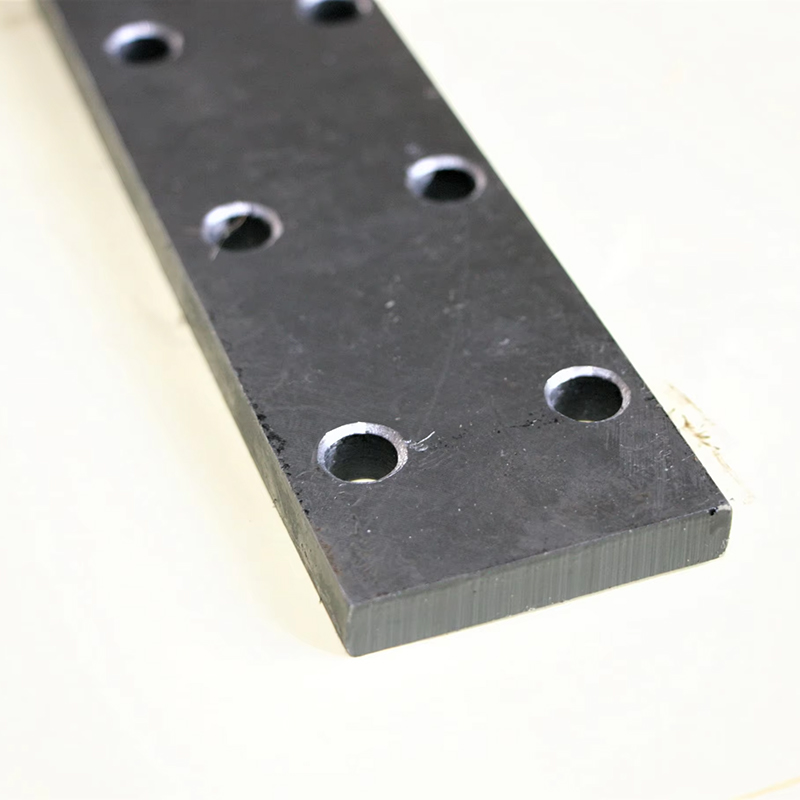

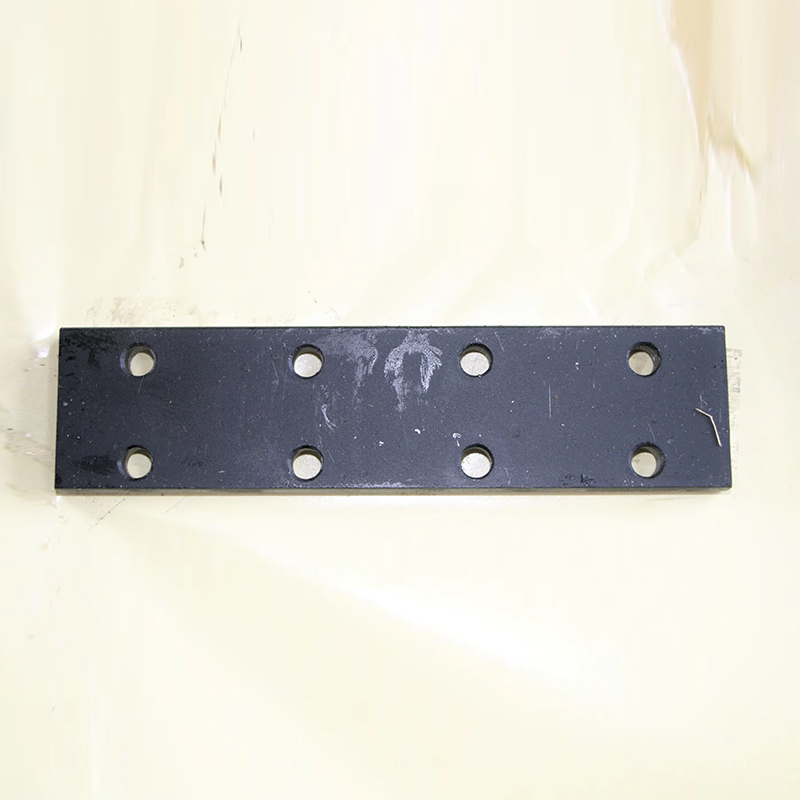

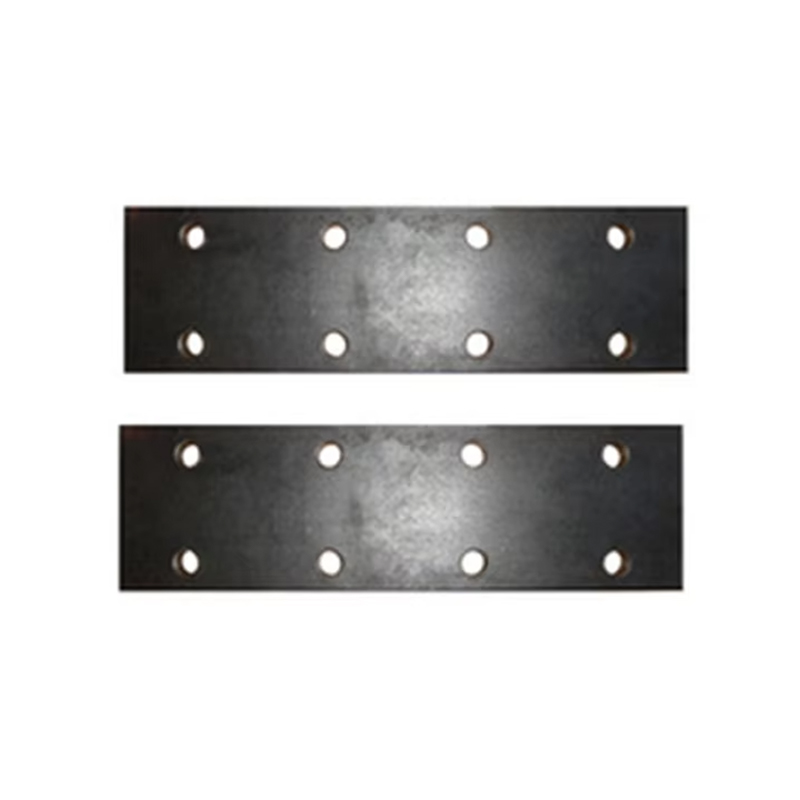

Home / Products / Elevator Parts / Shaft Components / Fishplate / VTSP119 Elevator Parts High-Strength Elevator Fishplate Lift Guide Rail Connecting Plate Durable Steel Joint Plate
Fishplate
Tel/wechat/whatsapp: +86-13812695057
E-mail: [email protected]
|
Suitable Rail Model
|
d
|
l1
|
l2f
|
l3f
|
b2
|
b3
|
vmin
|
Bolt
|
|
|
T45/A
|
9
|
160
|
65
|
15
|
50
|
25
|
8
|
M8x25
|
|
|
T50/A
|
9
|
200
|
75
|
25
|
50
|
30
|
8
|
M8x25
|
|
|
T70/A
|
13
|
250
|
105
|
25
|
70
|
42
|
10
|
M12x35
|
|
|
T70-1/B
|
13
|
250
|
105
|
25
|
70
|
42
|
10
|
M12x35
|
|
|
T75-3/B
|
13
|
250
|
105
|
25
|
70
|
42
|
10
|
M12x35
|
|
|
T78/B
|
13
|
250
|
105
|
25
|
70
|
42
|
10
|
M12x35
|
|
|
T82/B
|
13
|
216
|
80
|
26
|
80
|
50.8
|
10
|
M12x35
|
|
|
T89/B
|
13
|
305
|
114.3
|
38.1
|
90
|
57.2
|
13
|
M12x35
|
|
|
T90/B
|
13
|
305
|
114.3
|
38.1
|
90
|
57.2
|
13
|
M12x35
|
|
|
T114/B
|
17
|
305
|
114.3
|
38.1
|
120
|
70
|
17
|
M16x50
|
|
|
T127-1/B
|
17
|
305
|
114.3
|
38.1
|
130
|
79.4
|
17
|
M16x50
|
|
|
T127-2/B
|
17
|
305
|
114.3
|
38.1
|
130
|
79.4
|
17
|
M16x50
|
|
|
T140-1/B
|
21
|
380
|
152.4
|
31.8
|
140
|
92.1
|
28
|
M20x65
|
|
|
T140-2/B
|
21
|
380
|
152.4
|
31.8
|
140
|
92.1
|
28
|
M20x65
|
|
|
T140-3/B
|
21
|
380
|
152.4
|
31.8
|
140
|
92.1
|
38
|
M20x80
|
|
|
Tolerances
|
-
|
+3
|
±0.2
|
±0.2
|
-
|
±0.2
|
+3
|
-
|
|
|
0
|
0
|
||||||||
|
Suitable Rail Model
|
d
|
d1
|
b2
|
b3
|
l1
|
l2
|
l3
|
|
|
Type
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
|
|
T75-3/B
|
13
|
26
|
75
|
43
|
240
|
90
|
30
|
|
|
T78/B
|
13
|
26
|
78
|
43
|
240
|
90
|
30
|
|
|
T82/B
|
13
|
26
|
82.5
|
50.8
|
216
|
81
|
27
|
|
|
T89/B
|
13
|
26
|
89
|
57.2
|
305
|
114.3
|
38.1
|
|
|
T90/B
|
13
|
26
|
90
|
57.2
|
305
|
114.3
|
38.1
|
|
|
T114/B
|
17
|
33
|
114
|
79.4
|
305
|
114.3
|
38.1
|
|
|
T127-1/B
|
17
|
33
|
127
|
79.4
|
305
|
114.3
|
38.1
|
|
|
T127-2/B
|
17
|
33
|
127
|
79.4
|
305
|
114.3
|
38.1
|
|
|
T140-1/B
|
21
|
40
|
140
|
92.1
|
380
|
152.4
|
31.8
|
|
|
T140-2/B
|
21
|
40
|
140
|
92.1
|
380
|
152.4
|
31.8
|
|
|
T140-3/B
|
21
|
40
|
140
|
92.1
|
380
|
152.4
|
31.8
|
|
|
Tolerances
|
-
|
-
|
±1.5
|
±0.2
|
±1.5
|
±0.2
|
±0.2
|
|
|
Suitable Rail Model
|
h
|
wxx
|
wyy
|
weight
|
bolt
|
|
|
Type
|
mm
|
cm³
|
cm³
|
kg/pc
|
size
|
|
|
T75-3/B
|
61
|
9.29
|
7.06
|
2.1
|
M12x35
|
|
|
T78/B
|
55
|
7.56
|
6.71
|
1.8
|
M12x35
|
|
|
T82/B
|
66.6
|
10.20
|
7.40
|
1.36
|
M12x35
|
|
|
T89/B
|
61
|
14.25
|
11.80
|
3.8
|
M12x35
|
|
|
T90/B
|
74
|
20.87
|
11.80
|
4.1
|
M12x35
|
|
|
T114/B
|
88
|
29.70
|
19.10
|
5.0
|
M16x50
|
|
|
T127-1/B
|
88
|
30.40
|
23.40
|
5.4
|
M16x50
|
|
|
T127-2/B
|
88
|
30.90
|
36.20
|
6.9
|
M16x50
|
|
|
T140-1/B
|
107
|
53.40
|
44.30
|
10.5
|
M20x65
|
|
|
T140-2/B
|
101
|
68.00
|
51.20
|
12.9
|
M20x65
|
|
|
T140-3/B
|
126
|
114.60
|
69.40
|
17.5
|
M20x65
|
|
|
Tolerances
|
±0.1
|
-
|
-
|
-
|
-
|
|
