Model
|
NV41G
|
|
Speed(m/s)
|
0.5 - 2
|
|
Weight
|
730kg
|
|
Suspension
|
1:1
|
|
Max.Static Load
|
7500kg
|
|
Control
|
VVVF
|
|
Brake
|
DC110V 2A
|
|
Model
|
Load
(kg) |
Lift Speed
(m/s) |
Ratio
|
Sheave Diam
(mm) |
Rope Sheave
(mm) |
Motor Power
(kW) |
Pole
|
|
NV41G
|
800
|
1.6
|
59:2
|
Φ620
|
5×Φ13×20
|
12.5
|
4
|
|
NV41G
|
800
|
1.75
|
55:2
|
Φ620
|
5×Φ13×20
|
15
|
4
|
|
NV41G
|
800
|
2
|
49:2
|
Φ620
|
6×Φ13×20
|
18.5
|
4
|
|
NV41G
|
1000
|
1
|
49:1
|
Φ620
|
5×Φ13×20
|
11
|
4
|
|
NV41G
|
1000
|
1.6
|
59:2
|
Φ620
|
6×Φ13×20
|
18.5
|
4
|
|
NV41G
|
1000
|
1.75
|
55:2
|
Φ620
|
6×Φ13×20
|
18.5
|
4
|
|
NV41G
|
1000
|
2
|
49:2
|
Φ620
|
6×Φ13×20
|
18.5
|
4
|
|
NV41G
|
1150
|
1
|
49:1
|
Φ620
|
6×Φ13×20
|
15
|
4
|
|
NV41G
|
1150
|
1.6
|
59:2
|
Φ620
|
6×Φ13×20
|
18.5
|
4
|
|
NV41G
|
1150
|
1.75
|
55:2
|
Φ620
|
6×Φ13×20
|
18.5
|
4
|
|
NV41G
|
1150
|
2
|
49:2
|
Φ620
|
6×Φ13×20
|
22
|
4
|
VITIN brand is committed to the research and development, manufacturing, and export of various elevator escalator products and elevator accessories. It has two business segments, VITIN Accessories Company and VITIN Elevator Technology Company.

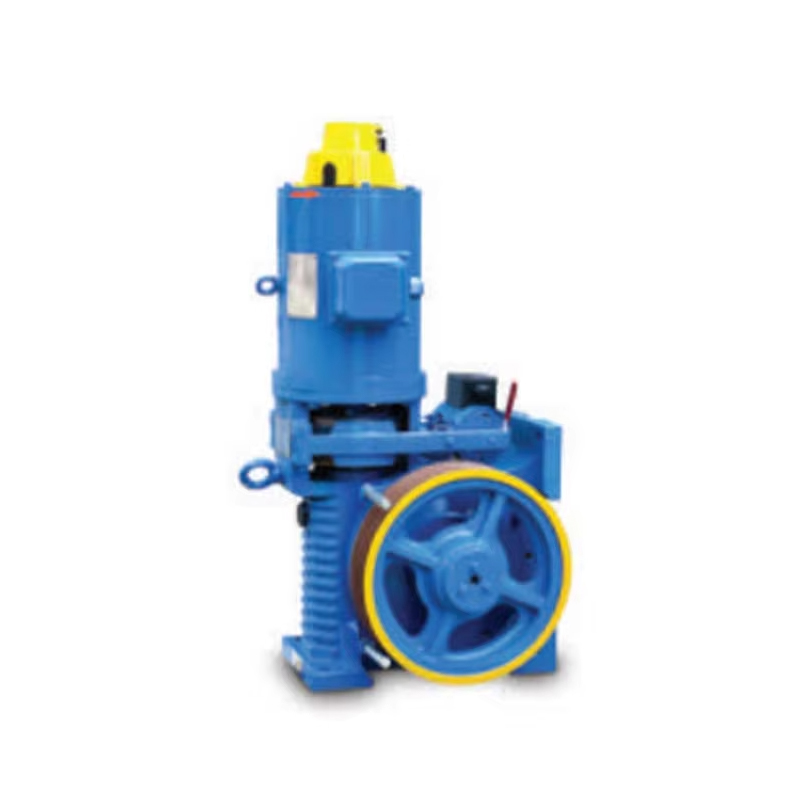

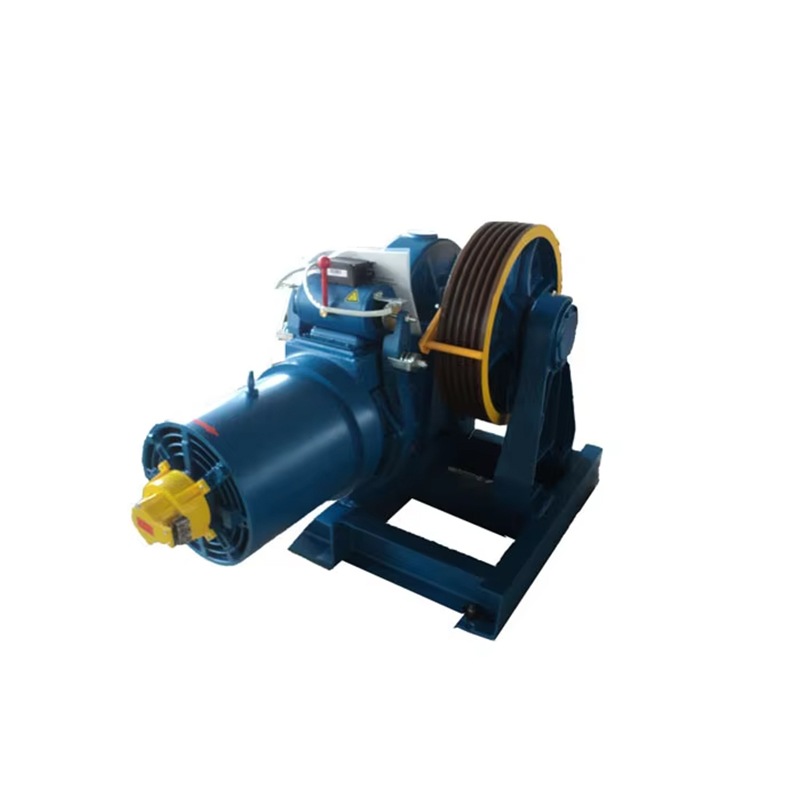

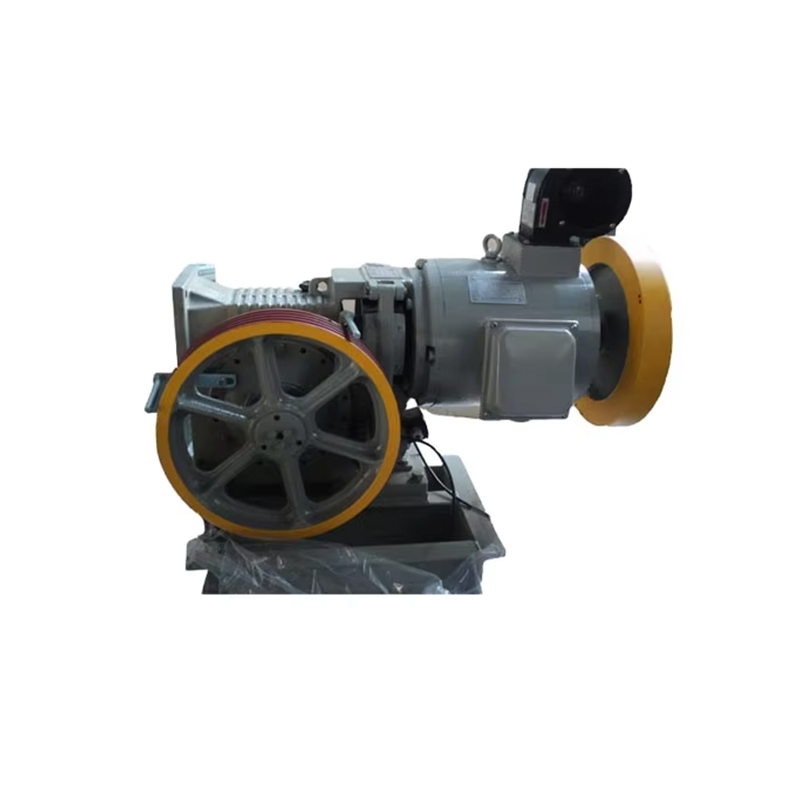

At the same time, we also have a production capacity of 100000 tons of elevator guide rails per year under our own brand. Suppliers of VTSP254 GTW9 Hotel Use Electric Elevator Traction Machine Motor 630KGS Capacity 1.0M_S Speed 380V_220V 2_1 Roping EN81 Certified.
After years of development, companies under the VITIN brand have exported over 800 containers of elevator escalators and accessories annually, covering sales in more than 50 countries and regions including Europe, North and South America, Southeast Asia, and the Middle East.
